• Year
  • 1957 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 10475

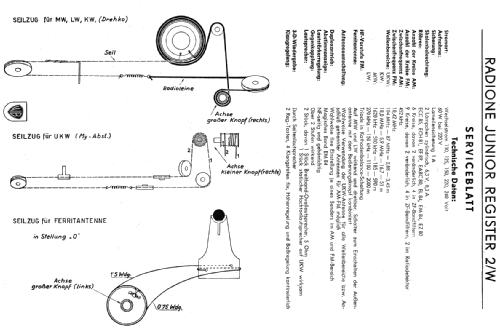

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 452 / 10420 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Junior Register 2-W - Radione RADIO Nikolaus Eltz;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 490 x 290 x 215 mm / 19.3 x 11.4 x 8.5 inch
  • Notes
  • Bandbreite: AM bis 7 kHz, FM bis 20 kHz, Wellenbereiche: UKW 2,88 m - 3,45 m (104 - 87 MHz), KW 16-51 m (18,5-5,9 MHz), MW 186-580 m (1620-510kHz), LW 1100-2000 m (270-150 kHz), Empfindlichkeit: AM unter 5 uV, FM besser als 2 Mikrovolt, Stromverbrauch 60 Watt
  • Net weight (2.2 lb = 1 kg)
  • 7.4 kg / 16 lb 4.8 oz (16.3 lb)
  • Price in first year of sale
  • 2,150.00 ATS
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Unterlagen E.Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
