Junior Register 3-W; Radione RADIO (ID = 1948298) Radio
Radione RADIO: Junior Register 3-W [Radio] ID = 1948298 1400x935
Select picture or schematic to display from thumbnails on the right and click for download.
For model Junior Register 3-W, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1958 ?? Category: Broadcast Receiver - or past WW2 Tuner

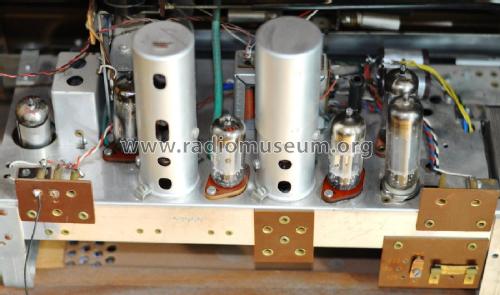

Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
schematic requested
Main principle Superheterodyne (common); ZF/IF 452/10420 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (undistorted)
from Radiomuseum.org Model: Junior Register 3-W - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 285 x 220 mm / 18.9 x 11.2 x 8.7 inch
Notes
  • Niederfrequente Bandbreite: AM: bis 7 kHz, FM: bis 20 kHz.
  • Wellenbereiche: UKW 2,88m - 3,45m (104 - 87 MHz), KW 16-51m (18,5-5,9 MHz), MW 186-580m (1620-510kHz), LW 1100-2000m (270-150 kHz)
  • Empfindlichkeit: AM: unter 5 Mikrovolt, FM: besser als 2 Mikrovolt.
  • Lautsprecher: 1 Hochleistungsovallautsprecher, 1 statischer Hochtonlautsprecher
  • Anschlussmöglichkeiten: Antenne, Erde, Dipol, Pick-up, Magnetophon, zweiter Lautsprecher.
  • Stromverbrauch 60 Watt

Siehe auch: Radione Junior Register 2 W

Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Price in first year of sale 2'150.00 ATS

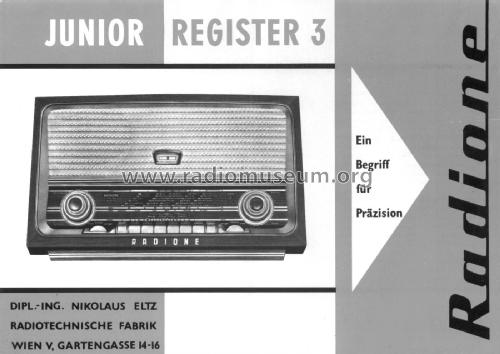

Source of data -- Original prospect or advert

Model page created by Robert Forchert-Mühlbachler. See "Data change" for further contributors.
