• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10497

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Number of Transistors
• 1

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 452/10420 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125, 220, 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

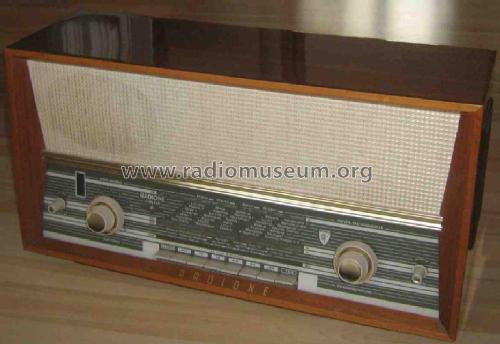

• Model: Jupiter A - Radione RADIO Nikolaus Eltz;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 280 x 187 mm / 21.7 x 11 x 7.4 inch

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 2,980.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Unterlagen E.Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 520 models, 363 with images and 321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
