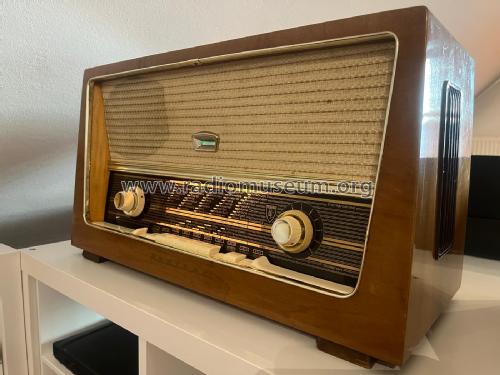

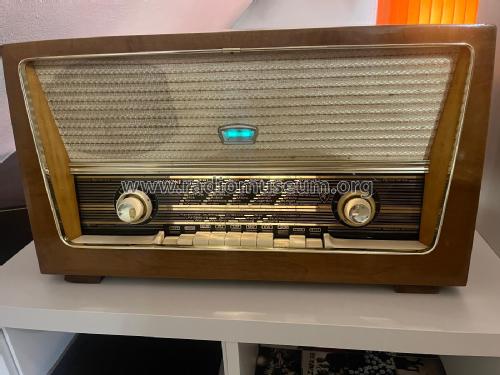

Jupiter W ohne Zierstreifen

• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 349996

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 461/10420 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 200; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Jupiter W [ohne Zierstreifen] - Radione RADIO Nikolaus Eltz;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 335 x 250 mm / 24.4 x 13.2 x 9.8 inch

• Notes

• Wie Jupiter W aber ohne Zierstreifen.

• Net weight (2.2 lb = 1 kg)
• 9.7 kg / 21 lb 5.9 oz (21.366 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
