Grand Koncert (Concert)
Use red slider bar for more.

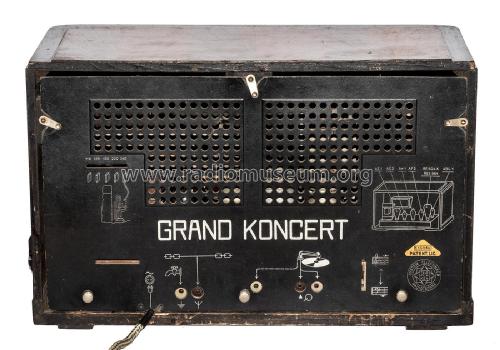

Radiotechna, spol. s: Grand Koncert [Radio] ID = 96098 933x660
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Kresl & spol, CS | ||||
|---|---|---|---|---|---|
Brand |
Telefunken Praha | ||||
| Year: 1935/1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: AH1 AC2 AF3 ABC1 RE604K AZ1 |
| Main principle | Superheterodyne (common); ZF/IF 484 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: Grand Koncert - Radiotechna, spol. s r. o., |
| Material | Wooden case |
| Dimensions (WHD) | 500 x 313 x 230 mm / 19.7 x 12.3 x 9.1 inch |
| Notes | Zeiger-Abstimmhilfe. Lizenzfertigung Telefunken. |
| Price in first year of sale | 2'460.00 Kc |
| External source of data | Erb |
| Source of data | Ceskoslovenske prijimace 1933-1945, Baudys 1947 |
