Start 101 1171. 101-00001; Rafena Werke (ID = 683894) Television

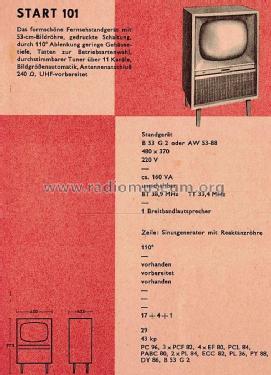

Rafena Werke: Start 101 1171. 101-00001 [Television] ID = 683894 327x439
Select picture or schematic to display from thumbnails on the right and click for download.
For model Start 101 1171. 101-00001, Rafena Werke Radeberg, VEB; Radeberg (Ostd.):
Ebay DE Auktion 190346091837

Country:  Germany
Manufacturer / Brand:  Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Brand

VEB Rafena; Radeberg (Ostd.)
Year: 1961/1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PC96 PCF82 EF80 PCL84 PABC80 PL84 ECC82 PL36 PY88 DY86 B53G2
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Start 101 1171. 101-00001 - Rafena Werke Radeberg, VEB;
Material Metal case
Shape Console with any shape - in general
Notes 53-cm-Standgerät, frontseitige Tastenumschalter, durchstimmbarer VHF-Tuner Band I+III mit kapazitiver Abstimmung. Röhren teilweise mehrfach vorhanden.
Source of data -- Original-techn. papers.
