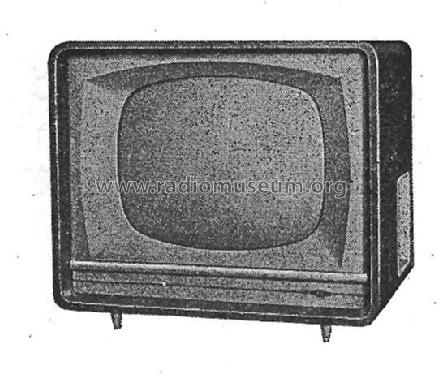

Rafena Werke: Start 2A 1171. 101-30001 [Television] ID = 1838654 600x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model Start 2A 1171. 101-30001, Rafena Werke Radeberg, VEB; Radeberg (Ostd.):
aus ebay: Auktion: 191587431875 Anbieter: elmrand

Country:  Germany
Manufacturer / Brand:  Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Brand

VEB Rafena; Radeberg (Ostd.)
Year: 1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PC96 PCF82 EF80 PCL84 PABC80 PL84 ECC82 PL36 PY88 DY86 B43G2 or B53G2
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Start 2A 1171. 101-30001 - Rafena Werke Radeberg, VEB;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 550 x 480 x 500 mm / 21.7 x 18.9 x 19.7 inch
Notes

Nicht alle Röhren gelistet, Bildröhre B43G2 oder B53G2, VHF-Bereiche durchstimmbar.

Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Price in first year of sale 1'600.00 DM
External source of data TV-Schaltungssammlung Werner Zimmerman
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Branchenbuch für Elektro-Akustik (DDR, 1963)
Documents regarding this model
  Servicehelfer 16 Blatt 2 2082 KB
  Servicehelfer 16 Blatt 3 1362 KB
  Servicehelfer 16 Blatt 4 1372 KB
  Servicehelfer 16 Blatt 7 2910 KB
  Servicehelfer 16 Blatt 5 1203 KB
  Servicehelfer 16 Blatt 6 1097 KB
