Allegro 82 B/C
REMA, Fabrik für: Allegro 82 B/C [Radio] ID = 1503280 933x489

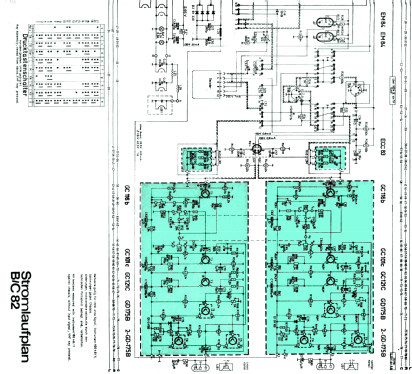

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1968/1969 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: ECC85 ECH81 EAF801 ECC83 EM84 EM84 EZ80 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | 15: GC100 GC116 GC101 GC121 GD175 OAA646 OA685 OA625 SY220 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 10 FM circuit(s) |
| Wave bands | Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 220; 240 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: Allegro 82 B/C - REMA, Fabrik für Rundfunk, |
| Material | Wooden case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 655 x 240 x 260 mm / 25.8 x 9.4 x 10.2 inch |
| Notes | HF-Stereo mit Decoder StD4, Stereo-Anzeige mit zweiter EM84. Zwei 7-Liter-Boxen (180×240×260 mm) im Lieferumfang. Hybrid-Bestückung, eisenlose Transistor-Endstufen 6 VA. Jeder Halbleitertyp ist nur einmal gelistet. |
| Net weight (2.2 lb = 1 kg) | 17 kg / 37 lb 7.1 oz (37.445 lb) |
| Price in first year of sale | 1'070.00 DM |
| Source of data | Radiokatalog Band 2, Ernst Erb |
| Mentioned in | Die Geschichte der Rundfunkindustrie der DDR Band 2 1968 - 1990 |
| Literature/Schematics (1) | radio fernsehen elektronik 1968; H.16 |
Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
