594 UKV

594 UKV; RIZ, Radioindustrija (ID = 775088) Radio
594 UKV; RIZ, Radioindustrija (ID = 580195) Radio 594 UKV; RIZ, Radioindustrija (ID = 580196) Radio
594 UKV; RIZ, Radioindustrija (ID = 1008217) Radio
Use red slider bar for more.

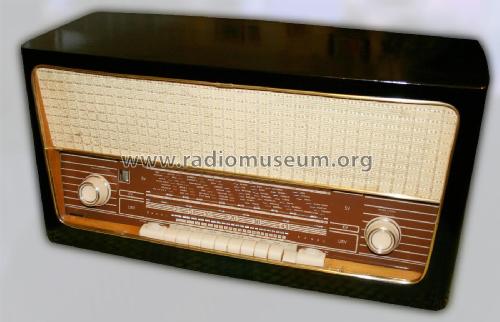

594 UKV; RIZ, Radioindustrija (ID = 580195) Radio
RIZ, Radioindustrija: 594 UKV [Radio] ID = 580195 765x490
Select picture or schematic to display from thumbnails on the right and click for download.
For model 594 UKV, RIZ, Radioindustrija Zagreb

Country:  Yugoslavia
Manufacturer / Brand:  RIZ, Radioindustrija Zagreb
alternative name

Radioindustrija Zabreb
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EBF80 EM80 EABC80 EL84 EL84 AZ1 AZ1
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: 594 UKV - RIZ, Radioindustrija Zagreb
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 700 x 370 x 260 mm / 27.6 x 14.6 x 10.2 inch
Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)

Model page created by Zlatan Mumlek. See "Data change" for further contributors.



All listed radios etc. from RIZ, Radioindustrija Zagreb
Here you find 63 models, 58 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
