Jadran 57A

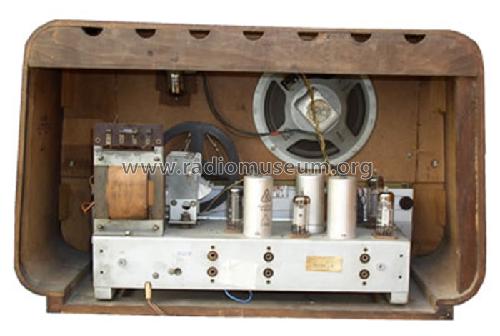

Jadran 57A; RIZ, Radioindustrija (ID = 585995) Radio Jadran 57A; RIZ, Radioindustrija (ID = 585997) Radio
Use red slider bar for more.
Jadran 57A; RIZ, Radioindustrija (ID = 585995) Radio
RIZ, Radioindustrija: Jadran 57A [Radio] ID = 585995 700x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jadran 57A, RIZ, Radioindustrija Zagreb

Country:  Yugoslavia
Manufacturer / Brand:  RIZ, Radioindustrija Zagreb
alternative name

Radioindustrija Zabreb
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EABC80 EL84 EM80 AZ1
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Jadran 57A - RIZ, Radioindustrija Zagreb
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 353 x 257 inch / 13716 x 8966 x 6528 mm
Net weight (2.2 lb = 1 kg) 10.2 kg / 22 lb 7.5 oz (22.467 lb)

Model page created by Zlatan Mumlek. See "Data change" for further contributors.
