Jadran 60

Jadran 60; RIZ, Radioindustrija (ID = 987543) Radio
Jadran 60; RIZ, Radioindustrija (ID = 585980) Radio Jadran 60; RIZ, Radioindustrija (ID = 585990) Radio
Jadran 60; RIZ, Radioindustrija (ID = 585992) Radio
Use red slider bar for more.
Jadran 60; RIZ, Radioindustrija (ID = 585980) Radio

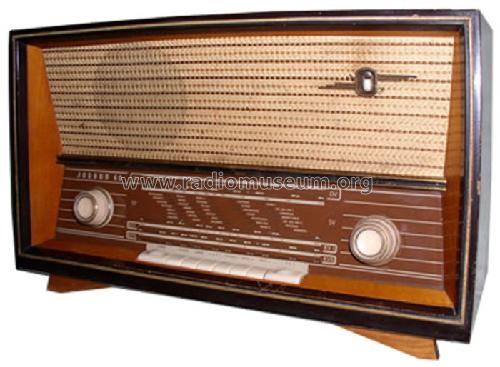

RIZ, Radioindustrija: Jadran 60 [Radio] ID = 585980 700x515
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jadran 60, RIZ, Radioindustrija Zagreb

Country:  Yugoslavia
Manufacturer / Brand:  RIZ, Radioindustrija Zagreb
alternative name

Radioindustrija Zabreb
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EABC80 EL84 EM80 AZ1
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Jadran 60 - RIZ, Radioindustrija Zagreb
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 605 x 365 x 270 mm / 23.8 x 14.4 x 10.6 inch
Net weight (2.2 lb = 1 kg) 12.3 kg / 27 lb 1.5 oz (27.093 lb)

Model page created by Zlatan Mumlek. See "Data change" for further contributors.
