• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6647

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AK2 AF7 AB2 AC2 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

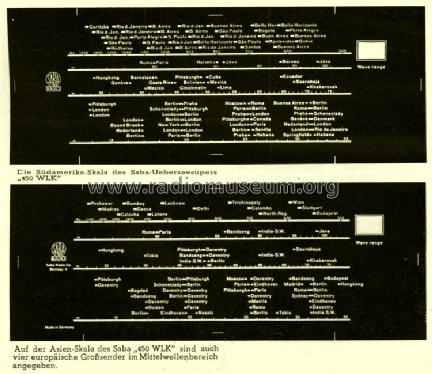

• Model: 450WLK Exp. - SABA; Villingen

• Dimensions (WHD)
• 565 x 370 x 330 mm / 22.2 x 14.6 x 13 inch

• Notes
• ZF=468/492; nur Exp.!

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Mentioned in
• Funkgeschichte der GFGF (9498)
