Schauinsland S604
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1956–1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 21082
-
- Brand: Schwer & Söhne, GmbH
Saba Reporter 12
Saba Reporter 12
Q: Saba Katalog '56
Q: Saba Katalog '56
Q: Saba Katalog '56

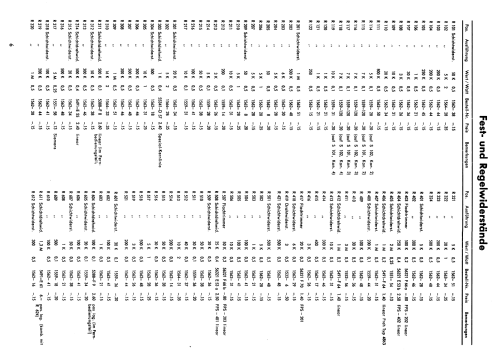

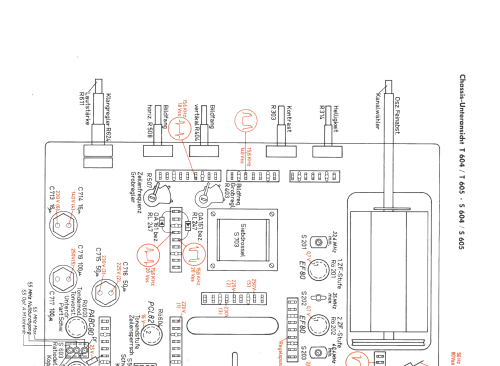

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- PCC84 PCF82 EF80 EF80 EF80 PCL81 ECL80 PCL82 PCL82 PL81 PY81 EY86 EF80 EF80 PABC80 MW43-69
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

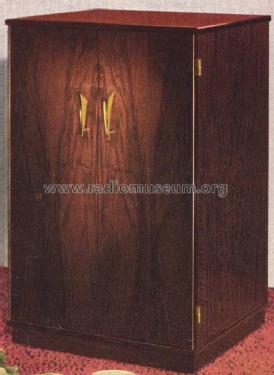

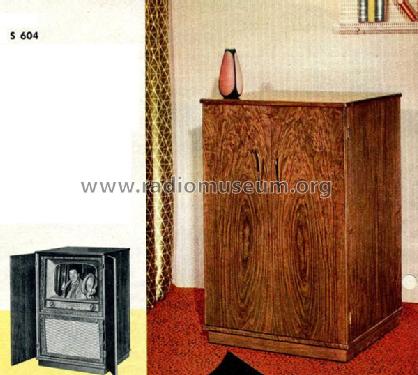

- Model: Schauinsland S604 - SABA; Villingen
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 560 x 880 x 534 mm / 22 x 34.6 x 21 inch
- Notes
-
Saba, Schauinsland S604
- 43 cm Fernsehgerät
- Empfangsbereiche
- VHF-Bereich: Kanäle 2 - 11 (Band I & III).
- Eingebaute Antenne für Kanal 5-11
- Lautsprecher 2 Stück 20 cm. Ø
- Antenneneingang 240 Ohm symmetrisch.
Die kabelgebundene Fernbedienung enthält die Bedienelemente zum Einstellen der Lautstärke und des Helligkeit.
- Net weight (2.2 lb = 1 kg)
- 47 kg / 103 lb 8.4 oz (103.524 lb)
- Price in first year of sale
- 1,128.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57
