• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1956–1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20893

• • Brand: Schwer & Söhne, GmbH

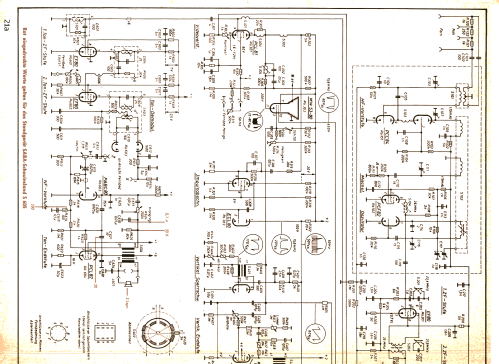

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC84 PCF82 EF80 EF80 EF80 PCL81 ECL80 PCL82 PCL82 PL36 PY83 EY86 EF80 EF80 PABC80 MW53-80

• Number of Transistors

• Semiconductors
• E220C350 OA160 OA161 OA161

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Schauinsland S605 - SABA; Villingen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 660 x 990 x 510 mm / 26 x 39 x 20.1 inch

• Notes

• Saba, Schauinsland S605

  • 53 cm Fernsehgerät
  • Empfangsbereiche
    • VHF-Bereich: Kanäle 2 - 11 (Band I & III).
    • Eingebaute Antenne für Kanal 5-11
  • Lautsprecher 2 Stück 20 cm. Ø
  • Antenneneingang 240 Ohm symmetrisch.

  Die kabelgebundene Fernbedienung enthält die Bedienelemente zum Einstellen der Lautstärke und des Helligkeit.

• Net weight (2.2 lb = 1 kg)
• 63 kg / 138 lb 12.3 oz (138.767 lb)

• Price in first year of sale
• 1,348.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
