Schauinsland T814

Schauinsland T814; SABA; Villingen (ID = 304308) Television

Schauinsland T814; SABA; Villingen (ID = 304309) Television

Schauinsland T814; SABA; Villingen (ID = 304310) Television

Schauinsland T814; SABA; Villingen (ID = 304312) Television

Schauinsland T814; SABA; Villingen (ID = 304313) Television

Schauinsland T814; SABA; Villingen (ID = 304311) Television

Schauinsland T814; SABA; Villingen (ID = 304314) Television
Schauinsland T814; SABA; Villingen (ID = 322295) Television Schauinsland T814; SABA; Villingen (ID = 1700307) Television
Schauinsland T814; SABA; Villingen (ID = 1700308) Television Schauinsland T814; SABA; Villingen (ID = 1700309) Television
Schauinsland T814; SABA; Villingen (ID = 1700313) Television
Use red slider bar for more.

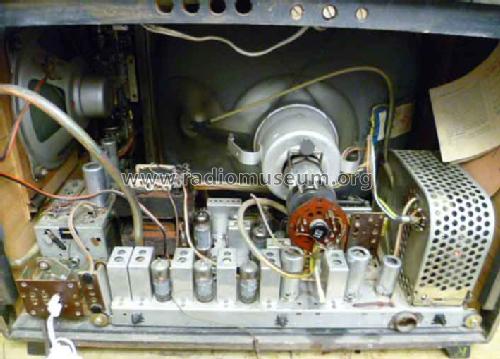

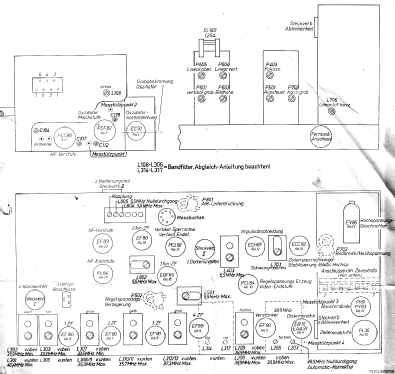

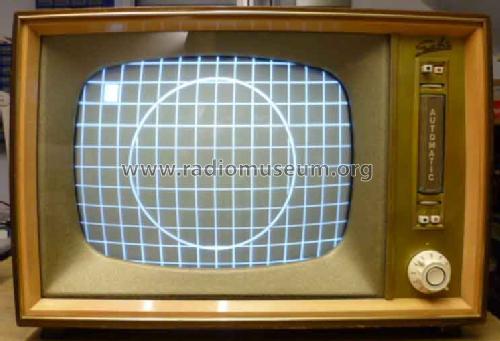

Schauinsland T814; SABA; Villingen (ID = 322295) Television
SABA; Villingen: Schauinsland T814 [Television] ID = 322295 882x589
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schauinsland T814, SABA; Villingen:
Saba Reporter 15

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1958/1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC88 PCF82 EC92 EF80 PCL84 EBF89 EAA91 ECH81 PCL82 ECC82 PL36 PY81 EY86 EF89 PL84 AW43-80
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Schauinsland T814 - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 575 x 400 x 390 mm / 22.6 x 15.7 x 15.4 inch
Notes Technische Daten wie Schauinsland T804, jedoch Gehäuse im modernen Stil. Automatische (elektronische) Scharfabstimmung mit Reaktanzröhre EC92. Kanalschalter für Band I und III hat keine mechanische Feinabstimmung mehr! Röhren teilweise mehrfach vorhanden.
Price in first year of sale 899.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
Mentioned in Funkschau (1958, Heft 11 S.278 f.)

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
