• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19701

• • Brand: Schwer & Söhne, GmbH

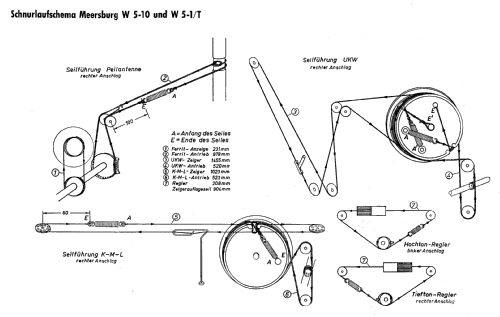

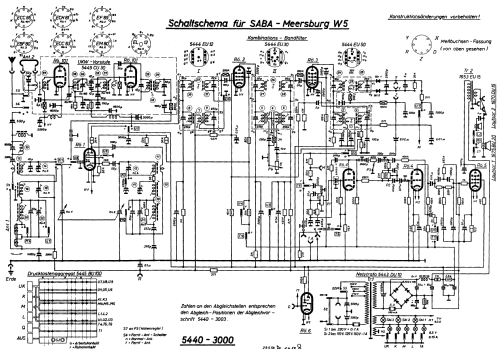

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EBF80 EM80 ECC83 EL12

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 9 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• 3 Loudspeakers

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

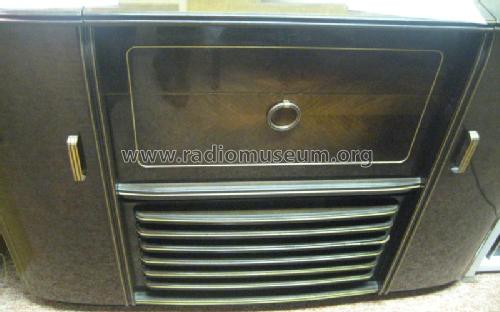

• Model: Truhe Meersburg W5 [Plattenspieler + TBd] - SABA; Villingen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1204 x 825 x 444 mm / 47.4 x 32.5 x 17.5 inch

• Notes

• Mit Plattenspieler PE3425 und
  Tonbandgerät AEG KL25; MHG-Schaltung. Siehe auch Mododell
  Truhe Meersburg W5/10.



• Net weight (2.2 lb = 1 kg)
• 70 kg / 154 lb 3 oz (154.185 lb)

• Price in first year of sale
• 2,195.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

• Other Models

• Here you find 1643 models, 1492 with images and 1176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SABA; Villingen
