Villingen W II(2)

Villingen W II; SABA; Villingen (ID = 9890) Radio

Villingen W II; SABA; Villingen (ID = 9891) Radio

Villingen W II; SABA; Villingen (ID = 9892) Radio
Villingen W II; SABA; Villingen (ID = 48994) Radio Villingen W II; SABA; Villingen (ID = 48995) Radio
Villingen W II; SABA; Villingen (ID = 48996) Radio Villingen W II; SABA; Villingen (ID = 943335) Radio
Villingen W II; SABA; Villingen (ID = 954695) Radio Villingen W II; SABA; Villingen (ID = 954696) Radio
Villingen W II; SABA; Villingen (ID = 954697) Radio Villingen W II; SABA; Villingen (ID = 954698) Radio
Villingen W II; SABA; Villingen (ID = 954699) Radio Villingen W II; SABA; Villingen (ID = 954700) Radio
Use red slider bar for more.
Villingen W II; SABA; Villingen (ID = 48994) Radio

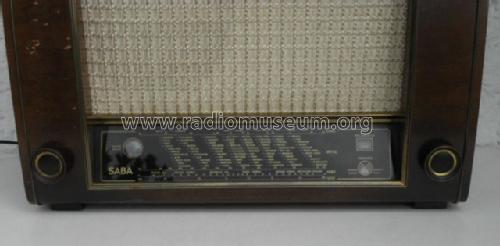

SABA; Villingen: Villingen W II [Radio] ID = 48994 720x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Villingen W II(2), SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF80 EC92 ECH81 EF41 EM4 EABC80 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Villingen W II - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 534 x 350 x 235 mm / 21 x 13.8 x 9.3 inch
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 298.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from SABA; Villingen
