Clivia FER858A

Clivia FER858A; Rafena Werke (ID = 172146) TV Radio

Clivia FER858A; Rafena Werke (ID = 172147) TV Radio

Clivia FER858A; Rafena Werke (ID = 172148) TV Radio

Clivia FER858A; Rafena Werke (ID = 172149) TV Radio

Clivia FER858A; Rafena Werke (ID = 172150) TV Radio

Clivia FER858A; Rafena Werke (ID = 172151) TV Radio

Clivia FER858A; Rafena Werke (ID = 811099) TV Radio
Clivia FER858A; Rafena Werke (ID = 148515) TV Radio Clivia FER858A; Rafena Werke (ID = 148516) TV Radio
Clivia FER858A; Rafena Werke (ID = 148517) TV Radio Clivia FER858A; Rafena Werke (ID = 148518) TV Radio
Use red slider bar for more.
Clivia FER858A; Rafena Werke (ID = 148515) TV Radio

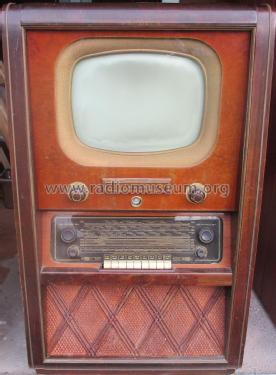

Rafena Werke: Clivia FER858A [TV Radio] ID = 148515 407x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model Clivia FER858A, Rafena Werke Radeberg, VEB; Radeberg (Ostd.):
ebay: teppanom # 6215394759

Country:  Germany
Manufacturer / Brand:  Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Brand

VEB Rafena; Radeberg (Ostd.)
Year: 1955/1956 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 17: EF80 ECC81 EABC80 EL84 EL83 ECL81 ECC82 EL81 EY81 EY51
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Clivia FER858A - Rafena Werke Radeberg, VEB;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 650 x 1100 x 540 mm / 25.6 x 43.3 x 21.3 inch
Notes Bildröhre B30M1, ab 1957 B43M1. Nur VHF-Bereich. 6xEF80, 2xEABC80, 2xECL81. Rundfunkgerät 'Stradivari' und Fernsehchassis FE855E eingebaut. Modell A mit Pentodentuner, D mit Kaskodetuner.
Collectors' prices
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Mentioned in Funkverlag Hein CD

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Here you find 94 models, 79 with images and 68 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Rafena Werke: Clivia FER858A
Threads: 1 | Posts: 1
Hits: 1175     Replies: 0
rafena: FER858A Clivia Umstellung auf CCIR-Norm
Gerald Gauert
05.Aug.07
  1

Eine Beschreibung zur Umstellung dieses Gerätes von OIR- auf CCIR-Norm finden Sie unter folgendem Link:

CCIR-Umstellung

Gerald Gauert


Rafena Werke: Clivia FER858A
