• Country
• Germany

• Manufacturer / Brand
• Rafena Werke Radeberg, VEB; Radeberg (Ostd.)

• Year
• 1956 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 77600

• • Brand: VEB Rafena; Radeberg (Ostd.)

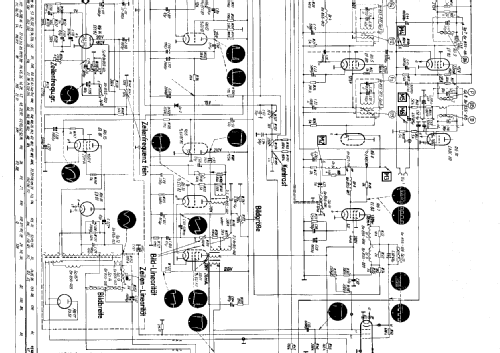

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• ECC84 ECF82 EABC80 ECL82 EF80 EL84 ECC82 EL83 EL81 EY81 EY51 MW43-64

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Clivia 2 / Clivia II FER858E Ch= FE855I - Rafena Werke Radeberg, VEB;

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 650 x 1110 x 540 mm / 25.6 x 43.7 x 21.3 inch

• Notes
• Bildröhre: B43M1 oder MW43-64. Röhren sind teilweise mehrfach vorhanden. Nur VHF-Bereich. Fernsehchassis "FE855J" und Rundfunkgerät "Beethoven/R" (modifizierte Ausführung des "Beethoven 2") eingebaut.

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
