Forum FE863H

Forum FE863H; Sachsenwerk Radeberg (ID = 308917) Television
Use red slider bar for more.
Forum FE863H; Sachsenwerk Radeberg (ID = 308917) Television

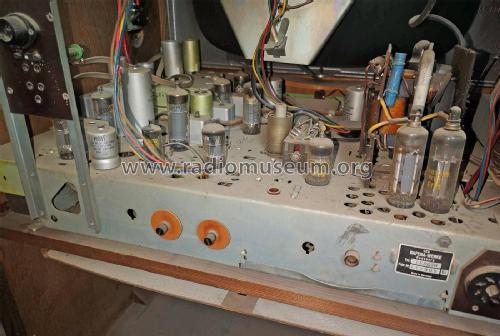

Sachsenwerk Radeberg: Forum FE863H [Television] ID = 308917 222x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Forum FE863H, Sachsenwerk Radeberg, VEB; Radeberg (Ostd.):
Sperrmüllfund Eigentümer seit 04.2007

Country:  Germany
Manufacturer / Brand:  Sachsenwerk Radeberg, VEB; Radeberg (Ostd.)
Year: 1958 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: ECC84 ECF82 EABC80 EL83 EF80 EL84 EH90 ECC82 EL81 EY81 EY51 ECL82
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Forum FE863H - Sachsenwerk Radeberg, VEB;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Chassis vom FE866A ohne UKW Rundfunkteil. VHF Bereich. Röhren sind teilweise mehrfach vorhanden.
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Sachsenwerk Radeberg, VEB; Radeberg (Ostd.)
Here you find 31 models, 29 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
