Olympia 573W/L; Sachsenwerk (ID = 1372828) Radio
Sachsenwerk: Olympia 573W/L [Radio] ID = 1372828 800x745
Select picture or schematic to display from thumbnails on the right and click for download.
For model Olympia 573W/L, Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)

Country:  Germany
Manufacturer / Brand:  Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)
Brand

VEB Elektromaschinenbau Sachsenwerk
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 220, 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Olympia 573W/L - Sachsenwerk Niedersedlitz,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 465 x 305 mm / 23.6 x 18.3 x 12 inch
Notes

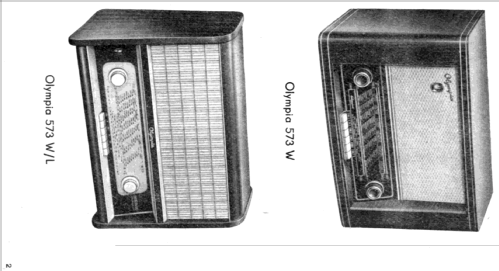

/L= modernes Luxusgehäuse, sonst wie 573W

Siehe auch Olympia Phonosuper 573W/P.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 515.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9504)
Literature/Schematics (1) Radio und Fernsehen 24/1957
