Radiowagen Olympia R573W/P 3D

Radiowagen Olympia R573W/P; Sachsenwerk (ID = 63420) Radio

Radiowagen Olympia R573W/P; Sachsenwerk (ID = 2029918) Radio

Radiowagen Olympia R573W/P; Sachsenwerk (ID = 2029919) Radio

Radiowagen Olympia R573W/P; Sachsenwerk (ID = 2029920) Radio

Radiowagen Olympia R573W/P; Sachsenwerk (ID = 2029921) Radio

Radiowagen Olympia R573W/P; Sachsenwerk (ID = 2029922) Radio

Radiowagen Olympia R573W/P; Sachsenwerk (ID = 2030142) Radio

Radiowagen Olympia R573W/P; Sachsenwerk (ID = 2030143) Radio
Radiowagen Olympia R573W/P; Sachsenwerk (ID = 58144) Radio Radiowagen Olympia R573W/P; Sachsenwerk (ID = 58145) Radio
Radiowagen Olympia R573W/P; Sachsenwerk (ID = 58146) Radio Radiowagen Olympia R573W/P; Sachsenwerk (ID = 58147) Radio
Radiowagen Olympia R573W/P; Sachsenwerk (ID = 58148) Radio Radiowagen Olympia R573W/P; Sachsenwerk (ID = 1372935) Radio
Radiowagen Olympia R573W/P; Sachsenwerk (ID = 1813684) Radio Radiowagen Olympia R573W/P; Sachsenwerk (ID = 2504720) Radio
Use red slider bar for more.

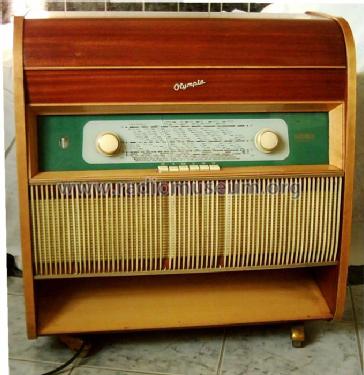

Radiowagen Olympia R573W/P; Sachsenwerk (ID = 58144) Radio
Sachsenwerk: Radiowagen Olympia R573W/P [Radio] ID = 58144 680x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiowagen Olympia R573W/P 3D, Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)

Country:  Germany
Manufacturer / Brand:  Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)
Brand

VEB Elektromaschinenbau Sachsenwerk
Year: 1956–1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Radiowagen Olympia R573W/P [3D] - Sachsenwerk Niedersedlitz,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 710 x 750 x 425 mm / 28 x 29.5 x 16.7 inch
Notes Rundfunkempfänger 573W in einen «Radiowagen» mit 3-D-Klang eingebaut - plus Plattenspieler. Siehe auch R573W ohne Pl.Sp.
Net weight (2.2 lb = 1 kg) 27 kg / 59 lb 7.5 oz (59.471 lb)
Price in first year of sale 870.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funk-Technik (FT) (5618)


All listed radios etc. from Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)
Here you find 49 models, 40 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
