Stahlsuper W
Schaleco - Schackow, Leder und Co; Berlin
- Country
- Germany
- Manufacturer / Brand
- Schaleco - Schackow, Leder und Co; Berlin
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6276
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150 ; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

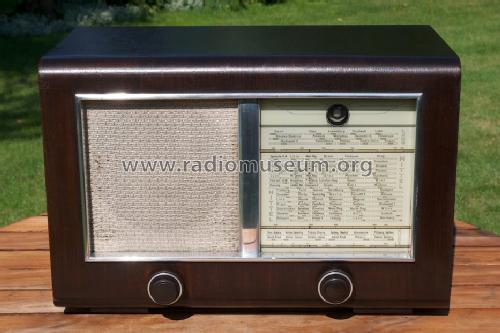

- Model: Stahlsuper W - Schaleco - Schackow, Leder und
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 490 x 323 x 255 mm / 19.3 x 12.7 x 10 inch
- Notes
- var.BBr.
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Price in first year of sale
- 210.00 RM
- Source of data
- Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
