Traumland 265W Super

Traumland 265W Super; Schaleco - Schackow, (ID = 38041) Radio

Traumland 265W Super; Schaleco - Schackow, (ID = 38042) Radio

Traumland 265W Super; Schaleco - Schackow, (ID = 9392) Radio

Traumland 265W Super; Schaleco - Schackow, (ID = 5700) Radio
Traumland 265W Super; Schaleco - Schackow, (ID = 2352213) Radio Traumland 265W Super; Schaleco - Schackow, (ID = 2352214) Radio
Traumland 265W Super; Schaleco - Schackow, (ID = 2352215) Radio Traumland 265W Super; Schaleco - Schackow, (ID = 615633) Radio
Traumland 265W Super; Schaleco - Schackow, (ID = 615635) Radio Traumland 265W Super; Schaleco - Schackow, (ID = 708513) Radio
Traumland 265W Super; Schaleco - Schackow, (ID = 1271499) Radio
Use red slider bar for more.
Traumland 265W Super; Schaleco - Schackow, (ID = 2352213) Radio
Schaleco - Schackow,: Traumland 265W Super [Radio] ID = 2352213 1400x1094
Select picture or schematic to display from thumbnails on the right and click for download.
For model Traumland 265W Super, Schaleco - Schackow, Leder und Co; Berlin:

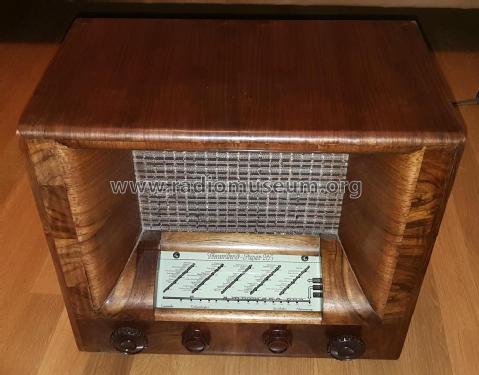

Funktionsfähiger, originaler Zustand

Country:  Germany
Manufacturer / Brand:  Schaleco - Schackow, Leder und Co; Berlin
Year: 1936–1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ACH1 AH1 AB2 AC2 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Traumland 265W Super - Schaleco - Schackow, Leder und
Material Wooden case
Dimensions (WHD) 450 x 390 x 290 mm / 17.7 x 15.4 x 11.4 inch
Notes Störspiegelsperre
Net weight (2.2 lb = 1 kg) 17.3 kg / 38 lb 1.7 oz (38.106 lb)
Price in first year of sale 265.00 RM

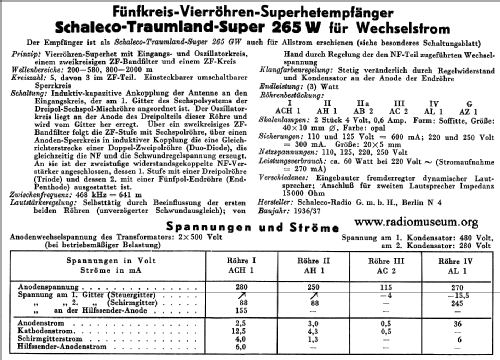

Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

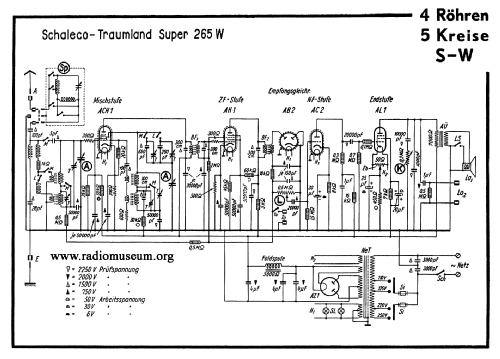

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Schaleco - Schackow, Leder und Co; Berlin
Here you find 119 models, 67 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
