Goldtruhe W30E 7619
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 97608

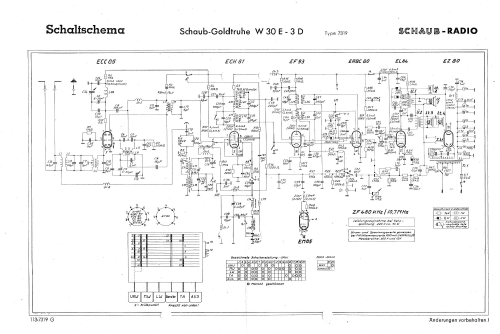

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 5.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Goldtruhe W30E 7619 - Schaub und Schaub-Lorenz
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 590 x 850 x 420 mm / 23.2 x 33.5 x 16.5 inch
- Notes
-
Schaltung ähnlich Schaub Goldsuper W30-3D.
- Net weight (2.2 lb = 1 kg)
- 30 kg / 66 lb 1.3 oz (66.079 lb)
- Price in first year of sale
- 518.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1954/55
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
