Melodia M2

Melodia M2; Elprom KB Kliment (ID = 595993) Radio

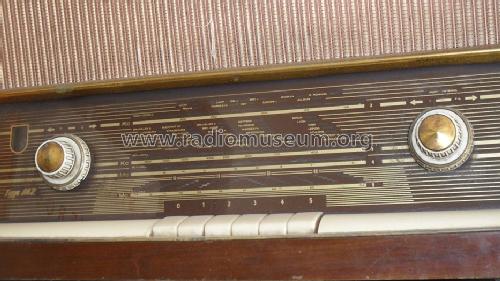

Melodia M2; Elprom KB Kliment (ID = 1234513) Radio Melodia M2; Elprom KB Kliment (ID = 1234515) Radio
Melodia M2; Elprom KB Kliment (ID = 1234516) Radio
Use red slider bar for more.
Melodia M2; Elprom KB Kliment (ID = 1234513) Radio
Elprom KB Kliment: Melodia M2 [Radio] ID = 1234513 933x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodia M2, Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia

Country:  Bulgaria
Manufacturer / Brand:  Elprom KB (Kliment Voroshilov Works, Slabotokov zavod); Sofia
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Melodia M2 - Elprom KB Kliment Voroshilov
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 330 x 255 mm / 23.6 x 13 x 10 inch
Notes

UKW: OIRT Band

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Source of data -- Original-techn. papers.

Model page created by Wolfgang Lill. See "Data change" for further contributors.
