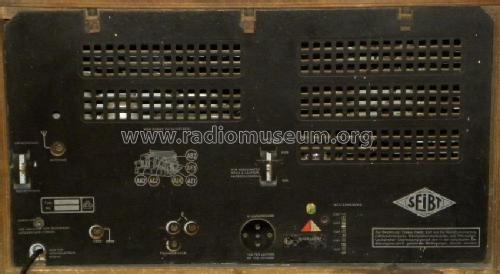

Seibt, Dr. Georg: 288W [Radio] ID = 681987 363x309
Select picture or schematic to display from thumbnails on the right and click for download.
For model 288W (K), Seibt, Dr. Georg (Nachf.); Berlin, auch München

Country:  Germany
Manufacturer / Brand:  Seibt, Dr. Georg (Nachf.); Berlin, auch München
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 AB2 AC2 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 288W - Seibt, Dr. Georg Nachf.;
Material Wooden case
Dimensions (WHD) 545 x 345 x 265 mm / 21.5 x 13.6 x 10.4 inch
Notes Feldst.Anz.;var.BBr.
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Price in first year of sale 288.00 RM
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

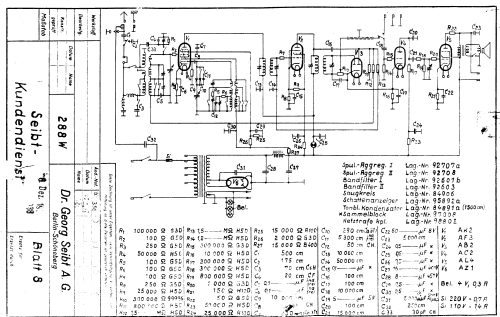

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
