Siemens; D S.&: 47aWL [Radio] ID = 18492 285x261
Select picture or schematic to display from thumbnails on the right and click for download.
For model 47aWL, Siemens; D (S.& Halske / S. Electrogeräte):

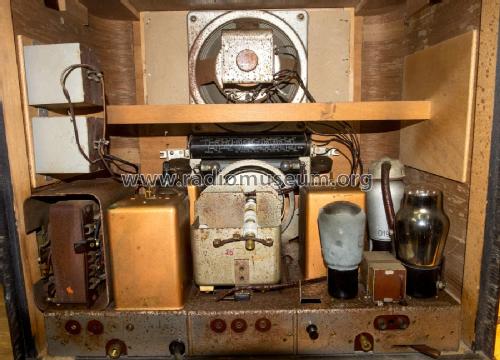

Quelle: ebay

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1933 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1214 RENS1214 REN914 RENS1374d RGN1064
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 1 AF stage(s); Anode bend detection
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2.9 W (unknown quality)
from Radiomuseum.org Model: 47aWL - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 410 x 470 x 270 mm / 16.1 x 18.5 x 10.6 inch
Notes

Siehe auch 47WL mit Regel-Hexoden (RENS1234) anstatt Tetroden.

Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb

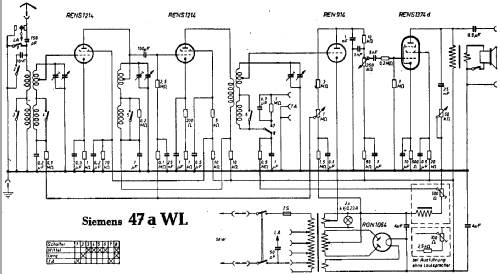

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funk Bastler (Funkbastler 1933, Heft 51, Seite 811)
