Bariton UKW-Super 564W

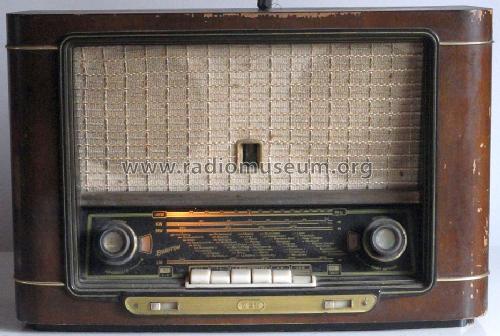

Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 9541) Radio

Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 135296) Radio

Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 135297) Radio

Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 135299) Radio

Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 135300) Radio

Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 135298) Radio

Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 135289) Radio
Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 411908) Radio Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 294142) Radio
Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 294141) Radio Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 35873) Radio
Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 294140) Radio Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 411907) Radio
Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 640915) Radio Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 640917) Radio
Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 902430) Radio Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 902431) Radio
Use red slider bar for more.
Bariton UKW-Super 564W; Siemens-Austria WSW; (ID = 411908) Radio
Siemens-Austria WSW;: Bariton UKW-Super 564W [Radio] ID = 411908 800x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bariton UKW-Super 564W, Siemens-Austria (WSW); Wien:
WSW Bariton W in Betrieb

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EF80 EM80 EABC80 EL84
Semiconductors (the count is only for transistors) B250C90
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Bariton UKW-Super 564W - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 340 x 220 mm / 20.5 x 13.4 x 8.7 inch
Notes
  • 6 Tasten
  • drehbare Ferritantenne.
  • Selen-Flachgleichrichter B250 C90
  • 2 Skalenlämpchen 7V; 0,3A
  • 2 Sicherungen 0,8A
Net weight (2.2 lb = 1 kg) 9.8 kg / 21 lb 9.4 oz (21.586 lb)
Price in first year of sale 2'385.00 öS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Mentioned in Radiotechnik, Die, Wien (RT 42) (5509B)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Siemens-Austria (WSW); Wien
Here you find 196 models, 173 with images and 128 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
