Bildmeister II (2) FT326

Bildmeister II FT326; Siemens; D S.& (ID = 1339145) Television Bildmeister II FT326; Siemens; D S.& (ID = 454323) Television
Use red slider bar for more.

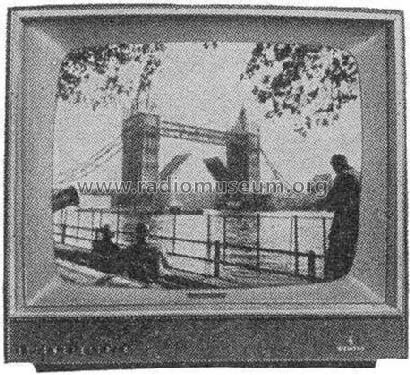

Bildmeister II FT326; Siemens; D S.& (ID = 1339145) Television
Siemens; D S.&: Bildmeister II FT326 [Television] ID = 1339145 600x527
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bildmeister II (2) FT326, Siemens; D (S.& Halske / S. Electrogeräte):
aus siemenskatalog 1973

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1962/1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: AW59-90 PL36 PY88 DY86 PCL84 PCL85 PCL86 EAA91 EF183 EF80 ECH84 PCF80 ECC82 PCC88 PC86 PC88
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bildmeister II FT326 - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 540 x 320 mm / 23.6 x 21.3 x 12.6 inch
Notes

VHF/UHF. Anschraubbare Beine gegen Mehrpreis (25,- DM).

Gehäusefarben Afrikanisch Birnbaum dunkel hochglanz, Nußbaum natur seidenglanz, Teak natur geölt.

Net weight (2.2 lb = 1 kg) 33.5 kg / 73 lb 12.6 oz (73.789 lb)
Price in first year of sale 1'218.00 DM
Source of data Handbuch VDRG 1962/1963

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
