Domino Super 131.622

Domino Super 131.622; Siemens-Austria WSW; (ID = 9570) Radio

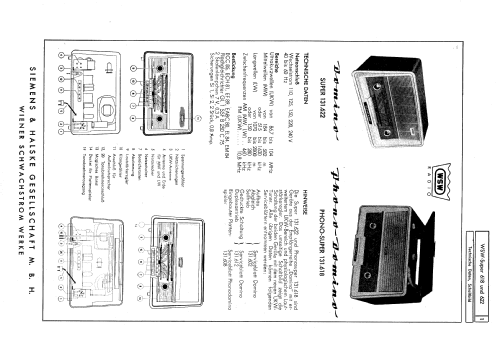

Domino Super 131.622; Siemens-Austria WSW; (ID = 72359) Radio

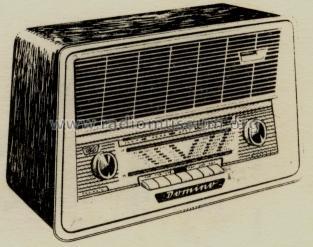

Domino Super 131.622; Siemens-Austria WSW; (ID = 103051) Radio Domino Super 131.622; Siemens-Austria WSW; (ID = 26136) Radio

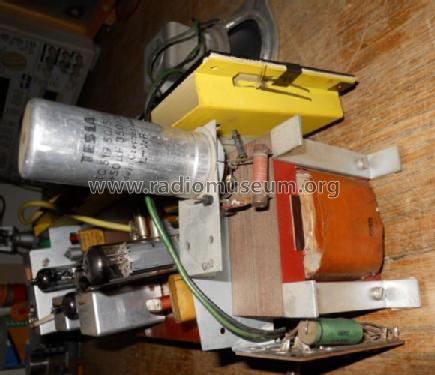

Domino Super 131.622; Siemens-Austria WSW; (ID = 841539) Radio Domino Super 131.622; Siemens-Austria WSW; (ID = 842629) Radio
Domino Super 131.622; Siemens-Austria WSW; (ID = 842630) Radio Domino Super 131.622; Siemens-Austria WSW; (ID = 842631) Radio
Domino Super 131.622; Siemens-Austria WSW; (ID = 842632) Radio Domino Super 131.622; Siemens-Austria WSW; (ID = 842633) Radio
Domino Super 131.622; Siemens-Austria WSW; (ID = 1619501) Radio Domino Super 131.622; Siemens-Austria WSW; (ID = 1619502) Radio
Use red slider bar for more.
Domino Super 131.622; Siemens-Austria WSW; (ID = 103051) Radio
Siemens-Austria WSW;: Domino Super 131.622 [Radio] ID = 103051 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Domino Super 131.622, Siemens-Austria (WSW); Wien

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 460/10800 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Domino Super 131.622 - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 451 x 258 x 180 mm / 17.8 x 10.2 x 7.1 inch
Notes

Nachfolger von Domino Super 612 mit erweitertem UKW Bereich bis 104MHz

Price in first year of sale 1'565.00 öS
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
