Jupiter 83GW; Siemens; D S.& (ID = 1403360) Radio
Siemens; D S.&: Jupiter 83GW [Radio] ID = 1403360 857x582
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jupiter 83GW, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CCH1 CF3 CBC1 CL4 optional AZ1 KS1320 or EUVI
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Jupiter 83GW - Siemens; D S.& Halske / S.
Material Wooden case
Dimensions (WHD) 630 x 330 x 290 mm / 24.8 x 13 x 11.4 inch
Notes Feldstärkeanzeige, variable Bandbreite.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 259.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

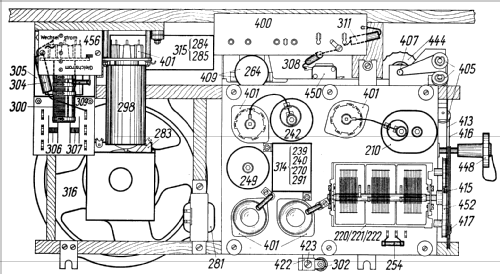

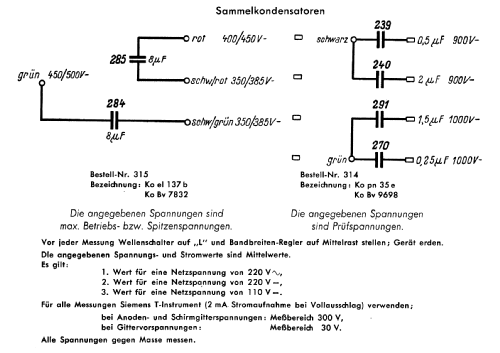

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
