Kaleidoskop FS5853

Kaleidoskop FS5853; Siemens-Austria WSW; (ID = 149992) Television

Kaleidoskop FS5853; Siemens-Austria WSW; (ID = 149993) Television

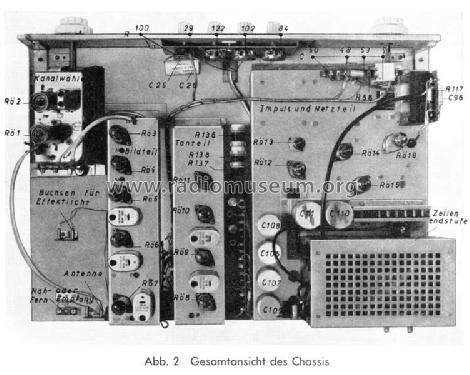

Kaleidoskop FS5853; Siemens-Austria WSW; (ID = 149989) Television Kaleidoskop FS5853; Siemens-Austria WSW; (ID = 149990) Television
Kaleidoskop FS5853; Siemens-Austria WSW; (ID = 149991) Television
Use red slider bar for more.
Kaleidoskop FS5853; Siemens-Austria WSW; (ID = 149989) Television
Siemens-Austria WSW;: Kaleidoskop FS5853 [Television] ID = 149989 627x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kaleidoskop FS5853, Siemens-Austria (WSW); Wien

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC88 PCF80 EF80 PL83 PABC80 PL82 EH90 PCL82 PL36 PY81 DY87 AW53-80
Main principle Superheterodyne (common)
Details
Power type and voltage AC/DC-set / 110, 125, 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Kaleidoskop FS5853 - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 630 x 570 x 580 mm / 24.8 x 22.4 x 22.8 inch
Notes Röhren teilweise mehrfach. Empfangsbereich VHF, Band I + III.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
Price in first year of sale 8'450.00 ATS
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
