• Year
  • 1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 86755

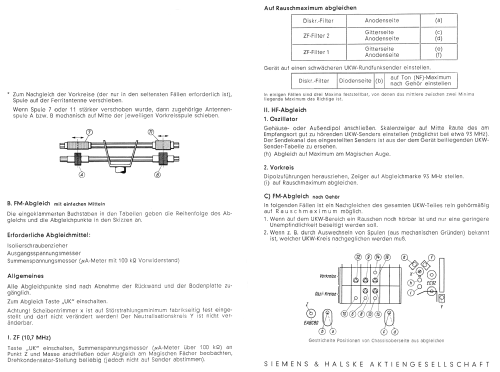

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 125, 220, 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Musiktruhe T353 - Siemens & Halske, -Schuckert
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 900 x 580 x 430 mm / 35.4 x 22.8 x 16.9 inch
  • Notes

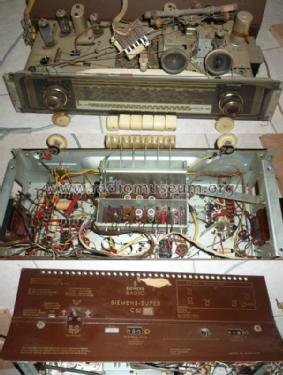

  • Chassis: C62DGb, Gehäuse: Edelholz hell oder dunkel, Plattenwechsler: Ebner Rex A oder PW9, Lautsprecher: 2x dyn. Hochtonlautsprecher HM 10.
  • Net weight (2.2 lb = 1 kg)
  • 40 kg / 88 lb 1.7 oz (88.106 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
