- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21946
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-125; 150; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

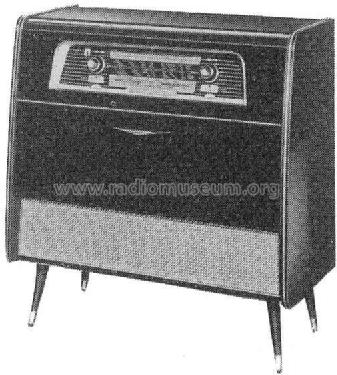

- Model: TR17 - Siemens & Halske, -Schuckert
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 800 x 800 x 380 mm / 31.5 x 31.5 x 15 inch
- Notes
- Phono-Chassis = Perpetuum-Ebner Rex A58.
- Net weight (2.2 lb = 1 kg)
- 27 kg / 59 lb 7.5 oz (59.471 lb)
- Price in first year of sale
- 628.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
