RR6228
Siemens Italia; Milano
- Country
- Italy
- Manufacturer / Brand
- Siemens Italia; Milano
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 117408
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 469/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RR6228 - Siemens Italia; Milano
- Shape

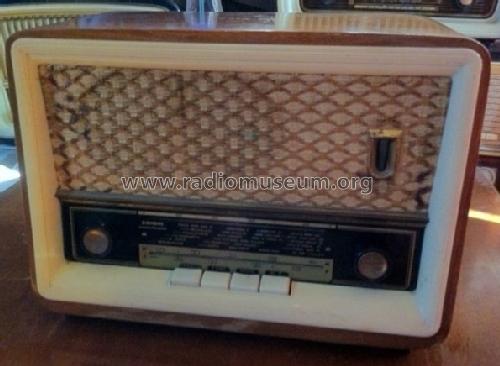

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 275 x 185 x 160 mm / 10.8 x 7.3 x 6.3 inch
- Notes
- 1 raddrizzatore E250C85. Altoparlante magnetodinamico ellittico di dimensioni 160x105mm. Serie ANIE MF.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Price in first year of sale
- 36,000.00 LIT
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
