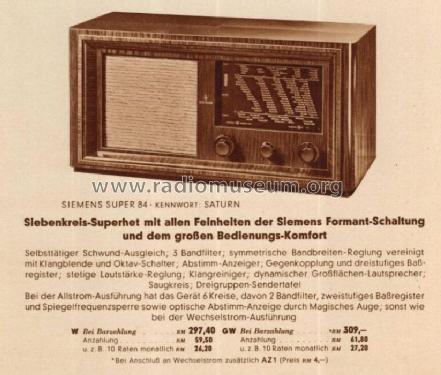

Saturn 84GW

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: CK1 CF3 CB2 CL4 C/EM2 optional AZ1 KS1320 or KS122020 or EUVI or EUXX
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Saturn 84GW - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 650 x 330 x 300 mm / 25.6 x 13 x 11.8 inch
Notes var.BBr.
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 309.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

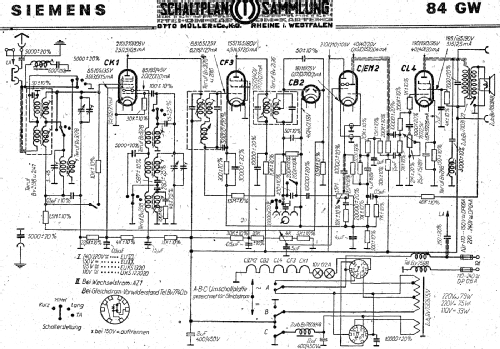

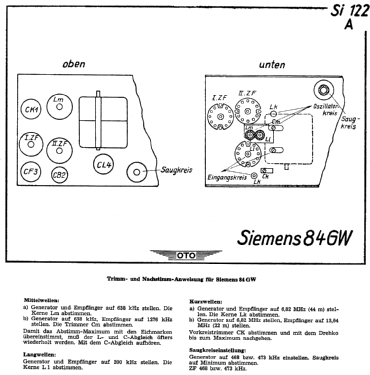

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
