Super 36WL

Super 36WL; Siemens; D S.& (ID = 112564) Radio

Super 36WL; Siemens; D S.& (ID = 112565) Radio

Super 36WL; Siemens; D S.& (ID = 112566) Radio

Super 36WL; Siemens; D S.& (ID = 112567) Radio

Super 36WL; Siemens; D S.& (ID = 112568) Radio

Super 36WL; Siemens; D S.& (ID = 112570) Radio

Super 36WL; Siemens; D S.& (ID = 6469) Radio

Super 36WL; Siemens; D S.& (ID = 10370) Radio

Super 36WL; Siemens; D S.& (ID = 356374) Radio
Super 36WL; Siemens; D S.& (ID = 53469) Radio Super 36WL; Siemens; D S.& (ID = 43579) Radio
Super 36WL; Siemens; D S.& (ID = 43578) Radio Super 36WL; Siemens; D S.& (ID = 53470) Radio
Super 36WL; Siemens; D S.& (ID = 708625) Radio Super 36WL; Siemens; D S.& (ID = 1506482) Radio
Super 36WL; Siemens; D S.& (ID = 1777089) Radio Super 36WL; Siemens; D S.& (ID = 1777090) Radio
Super 36WL; Siemens; D S.& (ID = 1777091) Radio
Use red slider bar for more.
Super 36WL; Siemens; D S.& (ID = 53469) Radio

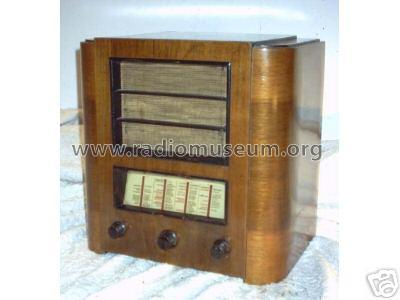

Siemens; D S.&: Super 36WL [Radio] ID = 53469 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 36WL, Siemens; D (S.& Halske / S. Electrogeräte):
Bild ebay

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1264 RENS1264 RENS1374d RGN1064
Main principle Superheterodyne (common); ZF/IF 232/500 kHz; Super, reaction, but not adjustable
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super 36WL - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 330 x 340 x 230 mm / 13 x 13.4 x 9.1 inch
Notes

Rückkopplungs Audion für Demodulation.
ZF für MW= 232kHz,
ZF für LW= 500kHz.

Parallelgerät zum Telefunken Nauen 330WL in anderem Gehäuse.
Parallelgerät zum AEG Super-Geatron 303WL in anderem Gehäuse.

Price in first year of sale 225.00 RM !
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
