195A; Siera; Belgien (ID = 20106) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UAF41 UAF41 UL41 UY1N
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 195A - Siera; Belgien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 350 x 200 mm / 18.5 x 13.8 x 7.9 inch
Net weight (2.2 lb = 1 kg) 10.8 kg / 23 lb 12.6 oz (23.789 lb)
Price in first year of sale 565.00 SFR
External source of data E. Erb 3-907007-36-0

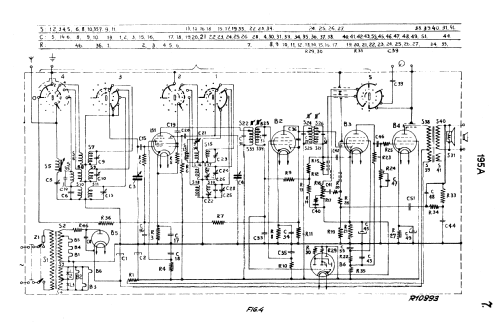

Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
