S17A -20

S17A -20; Siera; Belgien (ID = 1935861) Radio

S17A -20; Siera; Belgien (ID = 1935862) Radio

S17A -20; Siera; Belgien (ID = 1935863) Radio

S17A -20; Siera; Belgien (ID = 1935864) Radio

S17A -20; Siera; Belgien (ID = 1935865) Radio

S17A -20; Siera; Belgien (ID = 1935866) Radio

S17A -20; Siera; Belgien (ID = 1935867) Radio

S17A -20; Siera; Belgien (ID = 1935868) Radio

S17A -20; Siera; Belgien (ID = 1935869) Radio

S17A -20; Siera; Belgien (ID = 1935870) Radio
S17A -20; Siera; Belgien (ID = 1916368) Radio
Use red slider bar for more.
S17A -20; Siera; Belgien (ID = 1916368) Radio
Siera; Belgien: S17A -20 [Radio] ID = 1916368 895x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model S17A -20, Siera; Belgien:
from technical manual

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF5 EBC3 EBL1 EM1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: S17A -20 - Siera; Belgien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 335 x 245 mm / 19.3 x 13.2 x 9.6 inch
Notes
3 Band reception:
  • LW: 720 - 2000 m.
  • BC: 195 - 585 m.
  • SW: 16,7 - 51 m.
Tuning scale light bulbs type: 3 x 8045 (6,3V, 320mA).
Loudspeaker Philips type 9618. Connectors for second loudspeaker and for pick-up.

This model S17A -20 is intended for the Belgian market.

This model is comparable with Philips 667ANSF H17A and Tenor T17A.

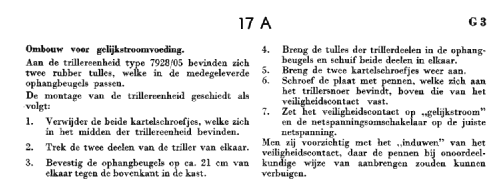

This radio can work on DC mains by inserting a vibrator convertor type 7928/05.

Net weight (2.2 lb = 1 kg) 13.3 kg / 29 lb 4.7 oz (29.295 lb)
Price in first year of sale 2'425.00 BEF
Mentioned in - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)

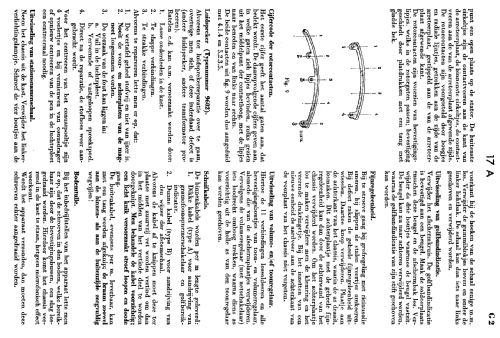

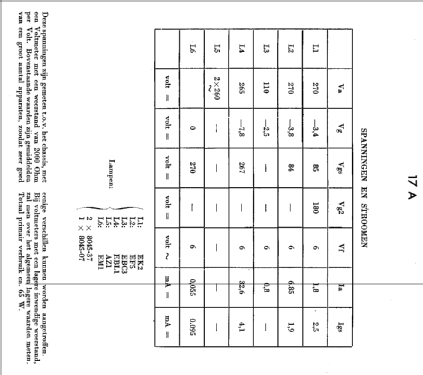

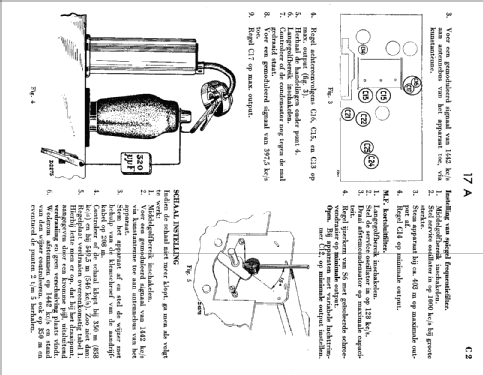

Literature/Schematics (1) -- Original-techn. papers. (Generic model 17A by Philips dated 1937)

Model page created by Dirk Bladt. See "Data change" for further contributors.
