S3024A/FM

S3024A/FM; Siera; Belgien (ID = 1048399) Radio

S3024A/FM; Siera; Belgien (ID = 1048400) Radio

S3024A/FM; Siera; Belgien (ID = 1048402) Radio

S3024A/FM; Siera; Belgien (ID = 1048404) Radio

S3024A/FM; Siera; Belgien (ID = 1048406) Radio

S3024A/FM; Siera; Belgien (ID = 1048408) Radio

S3024A/FM; Siera; Belgien (ID = 1048409) Radio

S3024A/FM; Siera; Belgien (ID = 1048410) Radio
S3024A/FM; Siera; Belgien (ID = 1020910) Radio
Use red slider bar for more.
S3024A/FM; Siera; Belgien (ID = 1020910) Radio
Siera; Belgien: S3024A/FM [Radio] ID = 1020910 800x628

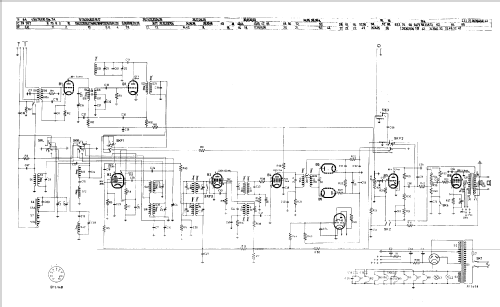

Select picture or schematic to display from thumbnails on the right and click for download.
For model S3024A/FM, Siera; Belgien:
Q = prospectus

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF85 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: S3024A/FM - Siera; Belgien
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 390 x 223 mm / 22.8 x 15.4 x 8.8 inch
Price in first year of sale 5'450.00 BFr
Source of data -- Original prospect or advert

Model page created by Hugo Sneyers. See "Data change" for further contributors.
