S5020A/FM; Siera; Belgien (ID = 1020904) Radio
Use red slider bar for more.
S5020A/FM; Siera; Belgien (ID = 1020904) Radio

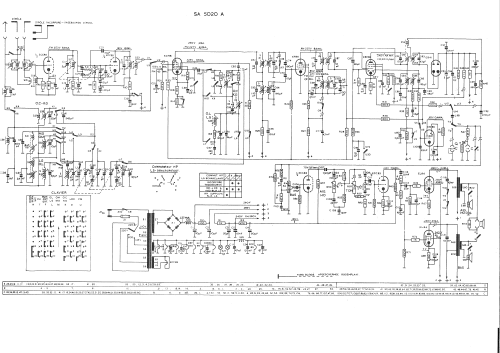

Siera; Belgien: S5020A/FM [Radio] ID = 1020904 800x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model S5020A/FM, Siera; Belgien:
Q = prospectus
Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EBF80 EM80 EB41 ECC83 EL84 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Power type and voltage Alternating Current supply (AC)
Loudspeaker 2 Loudspeakers
Power out
from Model: S5020A/FM - Siera; Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 680 x 420 x 280 mm / 26.8 x 16.5 x 11 inch
Price in first year of sale 6'950.00 BFr
Source of data -- Original prospect or advert

Model page created by Hugo Sneyers. See "Data change" for further contributors.
