SA1000U-70

SA1000U-70; Siera; Belgien (ID = 1053167) Radio
SA1000U-70; Siera; Belgien (ID = 460799) Radio SA1000U-70; Siera; Belgien (ID = 460807) Radio
SA1000U-70; Siera; Belgien (ID = 460808) Radio SA1000U-70; Siera; Belgien (ID = 1423312) Radio
SA1000U-70; Siera; Belgien (ID = 1423313) Radio
Use red slider bar for more.
SA1000U-70; Siera; Belgien (ID = 460799) Radio
Siera; Belgien: SA1000U-70 [Radio] ID = 460799 448x303
Select picture or schematic to display from thumbnails on the right and click for download.
For model SA1000U-70, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1952 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY42
Main principle Superheterodyne (common); ZF/IF 452 kHz
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: SA1000U-70 - Siera; Belgien
Material Bakelite case

Model page created by a member from P. See "Data change" for further contributors.



All listed radios etc. from Siera; Belgien
Here you find 434 models, 394 with images and 176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from P




Forum contributions about this model
Siera; Belgien: SA1000U-70
Threads: 1 | Posts: 6
Hits: 4232     Replies: 5
A new radio Siera
Luis Santiago
26.May.08
  1

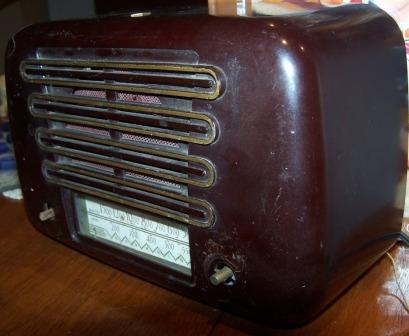

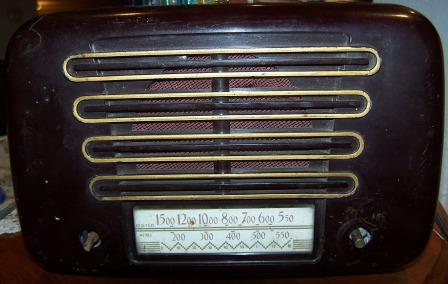

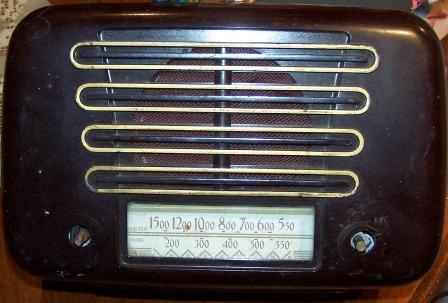

I have a new radio Siera. Without model or any identification.

Can someone help me?

Thanks in advanced,

Luís Santiago



Attachments

Martin Bösch
26.May.08
  2 Hallo  Luis,
please let us know, what's written on the typeplate, You might be able to identify the set from that information,
please try to write the content down or take a narrow picture of it,
kind regards Martin
Luis Santiago
27.May.08
  3

Hello Martin,

what can I find in the typeplate is this:

SA1000270

The tubes are type"U" and I identified one as "UY42".

I don't know if it is enough to find the Model.

Best regards,

Luís



Luis Santiago
02.Jun.08
  4

Hello Martin,

this weekend I tried to find more identification about the Siera Radio. In the back side of the typeplate I could find more information about the device. For that I used a magnifying glass and I was able to find this:

Type: SA1000U70

220V    45W

The tubes are: UY42; UF41; UL41; UBC41 and another one without any kind of identification.

In the same typeplate I found a symbol of Siera with "Made in Holland"

Best regards,

Luis







Frank Van de Ven
05.Jul.08
  5 Hello Luis.

You will find your radio in the Radio Museum database www.radiomuseum.org/r/siera_sa1000u70sa_1000_u7.html

edit: and I now noticed you added it, thank you.

Frank
Mark Andrews
05.Jul.08
  6

The dial and chassis look similar to a Philips set I have. Could it be made by Philips under license?

After a quick look, here is a photo of my Philips BX135U chassis. Very similar.

Attachments


Siera; Belgien: SA1000U-70
