Amati E4615A

Amati E4615A; Sondyna AG; Zürich- (ID = 20405) Radio

Amati E4615A; Sondyna AG; Zürich- (ID = 20406) Radio

Amati E4615A; Sondyna AG; Zürich- (ID = 1325883) Radio

Amati E4615A; Sondyna AG; Zürich- (ID = 1325884) Radio
Amati E4615A; Sondyna AG; Zürich- (ID = 13210) Radio Amati E4615A; Sondyna AG; Zürich- (ID = 30059) Radio
Amati E4615A; Sondyna AG; Zürich- (ID = 30058) Radio Amati E4615A; Sondyna AG; Zürich- (ID = 30057) Radio
Amati E4615A; Sondyna AG; Zürich- (ID = 30060) Radio Amati E4615A; Sondyna AG; Zürich- (ID = 256835) Radio
Amati E4615A; Sondyna AG; Zürich- (ID = 256836) Radio Amati E4615A; Sondyna AG; Zürich- (ID = 1401082) Radio
Amati E4615A; Sondyna AG; Zürich- (ID = 1401083) Radio
Use red slider bar for more.
Amati E4615A; Sondyna AG; Zürich- (ID = 13210) Radio

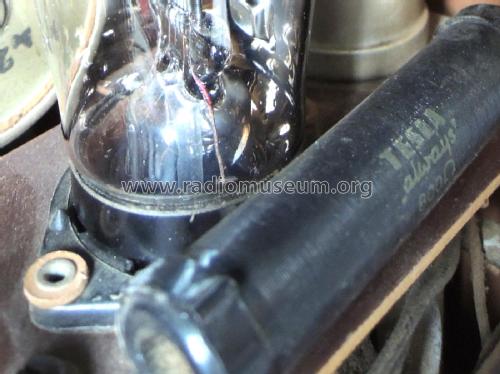

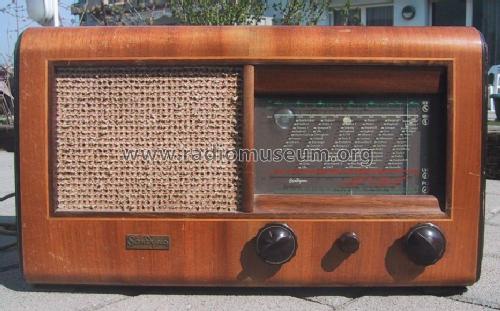

Sondyna AG; Zürich-: Amati E4615A [Radio] ID = 13210 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amati E4615A, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1947–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 7S7 7A7 7A6 7B4 EM4 6V6GT 80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Amati E4615A - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Ch=E4616. Kurzwellenlupe/Shortwave fine tuning.
Price in first year of sale 565.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

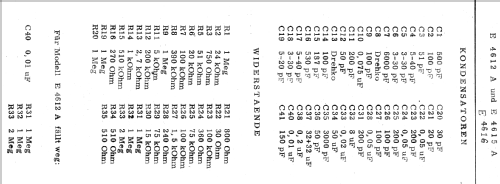

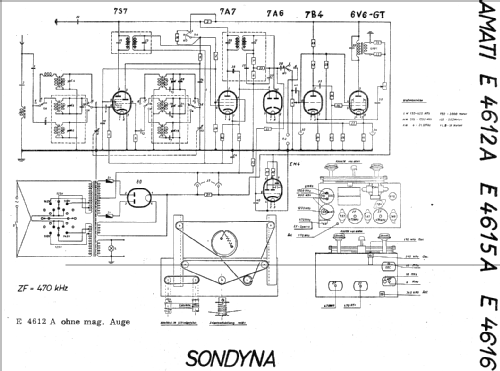

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.


All listed radios etc. from Sondyna AG; Zürich-Effretikon
Here you find 176 models, 107 with images and 112 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Sondyna AG; Zürich-: Amati E4615A
Threads: 1 | Posts: 1
Hits: 1564     Replies: 0
sondyna: E4615A; Amati: Restaurationshinweis
Eilert Menke
01.Nov.03
  1 Vorsicht, die Skalenbeschriftung ist extrem wischempfindlich! Aufgrund der Bilder von Herrn Haring gibt es offensichtlich auch eine Ausführung mit einer ECH21 statt der 7S7.

Sondyna AG; Zürich-: Amati E4615A
End of forum contributions about this model
