E5521

E5521; Sondyna AG; Zürich- (ID = 609679) Radio E5521; Sondyna AG; Zürich- (ID = 609677) Radio

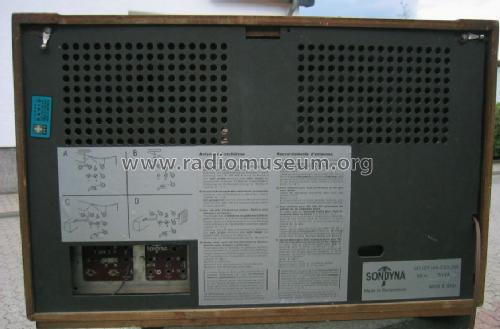

E5521; Sondyna AG; Zürich- (ID = 609678) Radio
Use red slider bar for more.
E5521; Sondyna AG; Zürich- (ID = 609679) Radio
Sondyna AG; Zürich-: E5521 [Radio] ID = 609679 800x522
Select picture or schematic to display from thumbnails on the right and click for download.
For model E5521, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC84 EC92 ECH81 EF85 EM80 EABC80 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: E5521 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 370 x 280 mm / 22.4 x 14.6 x 11 inch
Notes Drehbare Ferritantenne mit 2 Ferritstäben. HF/TR .

Model page created by Ottmar Lauth. See "Data change" for further contributors.
