Amati E5716

Amati E5716; Sondyna AG; Zürich- (ID = 89607) Radio

Amati E5716; Sondyna AG; Zürich- (ID = 275360) Radio

Amati E5716; Sondyna AG; Zürich- (ID = 275361) Radio
Amati E5716; Sondyna AG; Zürich- (ID = 681425) Radio Amati E5716; Sondyna AG; Zürich- (ID = 681429) Radio
Amati E5716; Sondyna AG; Zürich- (ID = 681431) Radio Amati E5716; Sondyna AG; Zürich- (ID = 408965) Radio

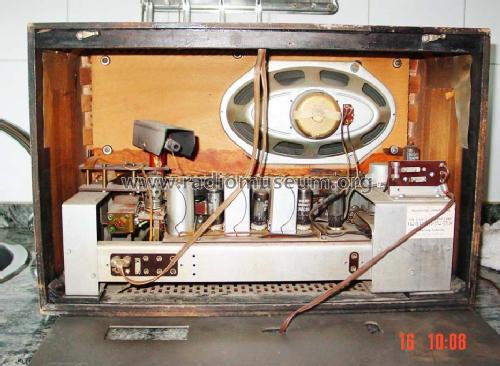

Amati E5716; Sondyna AG; Zürich- (ID = 1095570) Radio Amati E5716; Sondyna AG; Zürich- (ID = 1095571) Radio
Amati E5716; Sondyna AG; Zürich- (ID = 1095572) Radio
Use red slider bar for more.

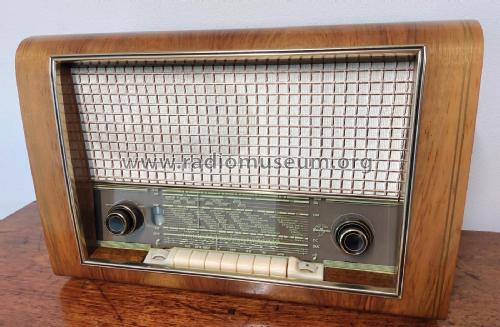

Amati E5716; Sondyna AG; Zürich- (ID = 681425) Radio
Sondyna AG; Zürich-: Amati E5716 [Radio] ID = 681425 933x663
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amati E5716, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26 cm = 10.2 inch
Power out
from Radiomuseum.org Model: Amati E5716 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 350 x 250 inch / 13208 x 8890 x 6350 mm
Price in first year of sale 425.00 CHF
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.



All listed radios etc. from Sondyna AG; Zürich-Effretikon
Here you find 176 models, 107 with images and 112 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
