Moderna E5815

Moderna E5815; Sondyna AG; Zürich- (ID = 1092592) Radio

Moderna E5815; Sondyna AG; Zürich- (ID = 1092588) Radio

Moderna E5815; Sondyna AG; Zürich- (ID = 1092589) Radio

Moderna E5815; Sondyna AG; Zürich- (ID = 1092590) Radio
Moderna E5815; Sondyna AG; Zürich- (ID = 251329) Radio Moderna E5815; Sondyna AG; Zürich- (ID = 251330) Radio
Moderna E5815; Sondyna AG; Zürich- (ID = 408968) Radio
Use red slider bar for more.
Moderna E5815; Sondyna AG; Zürich- (ID = 251329) Radio
Sondyna AG; Zürich-: Moderna E5815 [Radio] ID = 251329 650x462

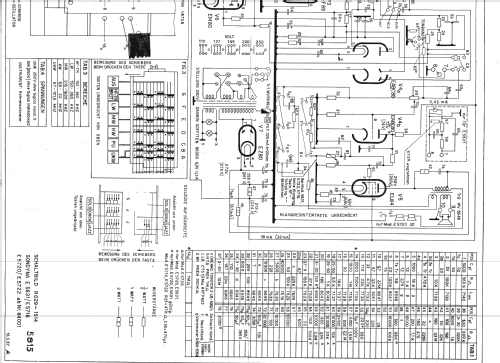

Select picture or schematic to display from thumbnails on the right and click for download.

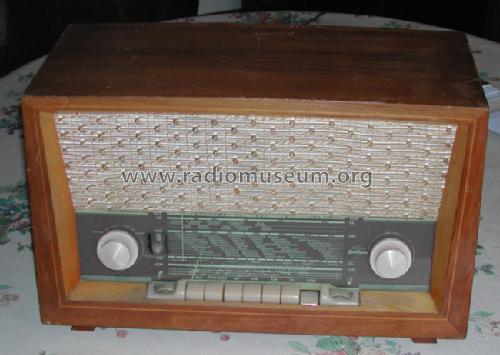

For model Moderna E5815, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Moderna E5815 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 290 x 260 mm / 19.7 x 11.4 x 10.2 inch
Price in first year of sale 398.00 CHF
Source of data -- Collector info (Sammler)

Model page created by François Mossina. See "Data change" for further contributors.



All listed radios etc. from Sondyna AG; Zürich-Effretikon
Here you find 175 models, 106 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
