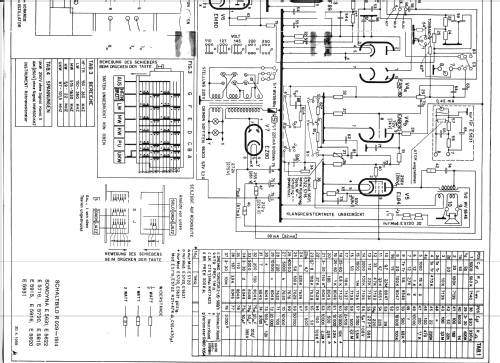

E5920; Sondyna AG; Zürich- (ID = 1092606) Radio

E5920; Sondyna AG; Zürich- (ID = 1092607) Radio

E5920; Sondyna AG; Zürich- (ID = 1092608) Radio
E5920; Sondyna AG; Zürich- (ID = 870083) Radio E5920; Sondyna AG; Zürich- (ID = 870084) Radio
E5920; Sondyna AG; Zürich- (ID = 870082) Radio E5920; Sondyna AG; Zürich- (ID = 870085) Radio
Use red slider bar for more.
E5920; Sondyna AG; Zürich- (ID = 870083) Radio
Sondyna AG; Zürich-: E5920 [Radio] ID = 870083 933x603
Select picture or schematic to display from thumbnails on the right and click for download.
For model E5920, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 471 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: E5920 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 560 x 340 x 240 mm / 22 x 13.4 x 9.4 inch
Mentioned in Radios von gestern, 2. Auflage

Model page created by Ernst Erb. See "Data change" for further contributors.
