Amati E-5715 ab Nr. 84001

Amati E-5715; Sondyna AG; Zürich- (ID = 169876) Radio

Amati E-5715; Sondyna AG; Zürich- (ID = 169879) Radio

Amati E-5715; Sondyna AG; Zürich- (ID = 169880) Radio

Amati E-5715; Sondyna AG; Zürich- (ID = 169881) Radio
Amati E-5715; Sondyna AG; Zürich- (ID = 728021) Radio Amati E-5715; Sondyna AG; Zürich- (ID = 728023) Radio

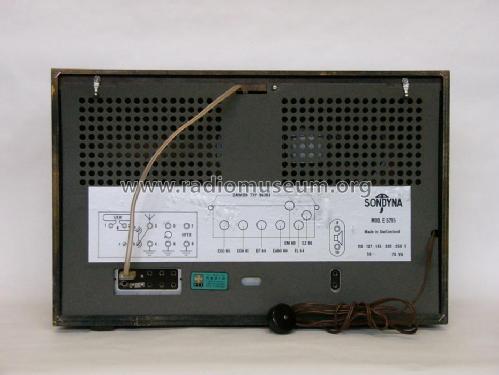

Amati E-5715; Sondyna AG; Zürich- (ID = 728022) Radio Amati E-5715; Sondyna AG; Zürich- (ID = 408963) Radio
Use red slider bar for more.
Amati E-5715; Sondyna AG; Zürich- (ID = 728021) Radio
Sondyna AG; Zürich-: Amati E-5715 [Radio] ID = 728021 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amati E-5715 ab Nr. 84001, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26 cm = 10.2 inch
Power out
from Radiomuseum.org Model: Amati E-5715 [ab Nr. 84001] - Sondyna AG; Zürich-Effretikon
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 350 x 250 mm / 20.5 x 13.8 x 9.8 inch
Price in first year of sale 398.00 CHF
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
