E 6531

E 6531; Sondyna AG; Zürich- (ID = 1843056) Radio E 6531; Sondyna AG; Zürich- (ID = 1843057) Radio

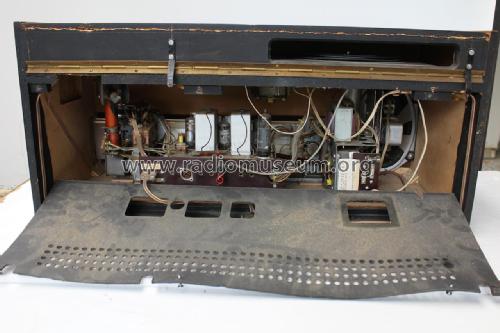

E 6531; Sondyna AG; Zürich- (ID = 1843058) Radio E 6531; Sondyna AG; Zürich- (ID = 1843059) Radio
E 6531; Sondyna AG; Zürich- (ID = 1843060) Radio
Use red slider bar for more.
E 6531; Sondyna AG; Zürich- (ID = 1843056) Radio
Sondyna AG; Zürich-: E 6531 [Radio] ID = 1843056 1280x853
Select picture or schematic to display from thumbnails on the right and click for download.
For model E 6531, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: E 6531 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 290 x 280 mm / 24.4 x 11.4 x 11 inch
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)

Model page created by Manuel Albano Neves. See "Data change" for further contributors.



All listed radios etc. from Sondyna AG; Zürich-Effretikon
Here you find 176 models, 107 with images and 112 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
